Rhino Lights Connex Pro
Rhino Lights Connex Pro
Rhino Lights Introduces our revolutionary Connex Pro Board is an upgraded more evolved addon system for our Rhino Eco System!! After we developed an industry first Turn signal, Braking and reverse functionality addon board for our whips we collected feedback and developed a Pro Version. Introducing the first addon board that allows you the most flexibility of any system on the market to date.

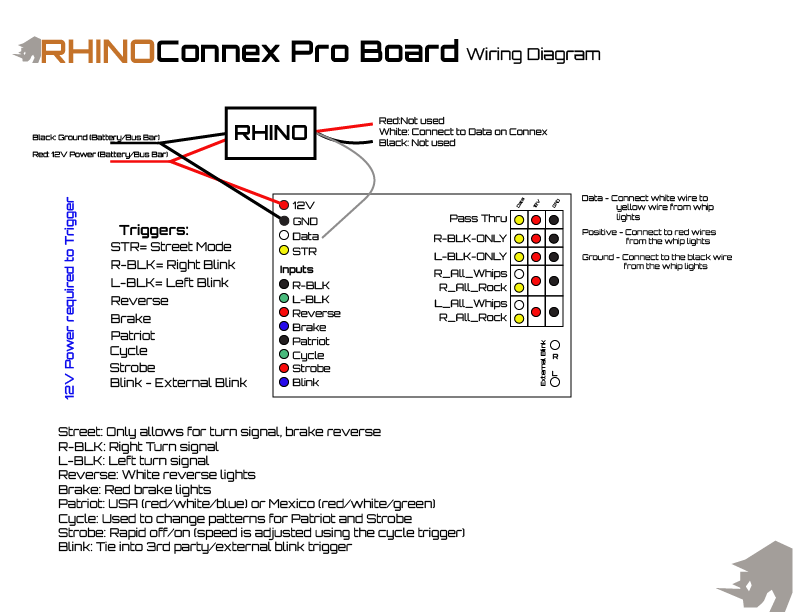

This board has 5 output channels:
Left / Right Full feature channel with Turn signal, braking and reversing functionality.
Left / Right Turn signal only that only reacts when the turn signal is activated.
Pass through channel that is not effected by any triggers ( Turn Signal, Brake, Reverse ) and just displays the patterns / colors from the controller or Patriot, S.O.S or Strobe Modes.
These channels allow you to have full control over you system, to tie in what products you want to what ever channel you want. Want your side mirrors and halos to have turn signal functionality? Done. Want to tie in your front left and right rock lights into the turn signal functionality channel, you can, Want your rear rock lights to activate on turn signal, braking and reverse? You can!
Features:
Patriot Mode - Red / White / Blue Patterns for America!
Strobe Mode - 5 strobe mode speeds.
External and Internal Blinking Capability - Allows to tie in external turn signal module to our system
S.O.S Mode that Strobes Amber/White or Red/Blue throughout the whole system.
12v Outputs for L / R Turn Signal to connect external lights via relays.
Street Only Mode - Ability to Turn the lights black ( OFF ) with a flick of a switch, but keeps the turn signal, reverse and braking functions
For more colors/ modes than listed above a RGB controller is required in addition to the connex pro
With this board the possible are limitless! This is only some of the features coming to this board.
