Rugged Radios

Military Grade Nexus Replacement Jack TJ-102

Military Grade Nexus Replacement Jack TJ-102

Regular price $20.00 USD
Regular price Sale price $20.00 USD
Sale Sold out
Shipping calculated at checkout.

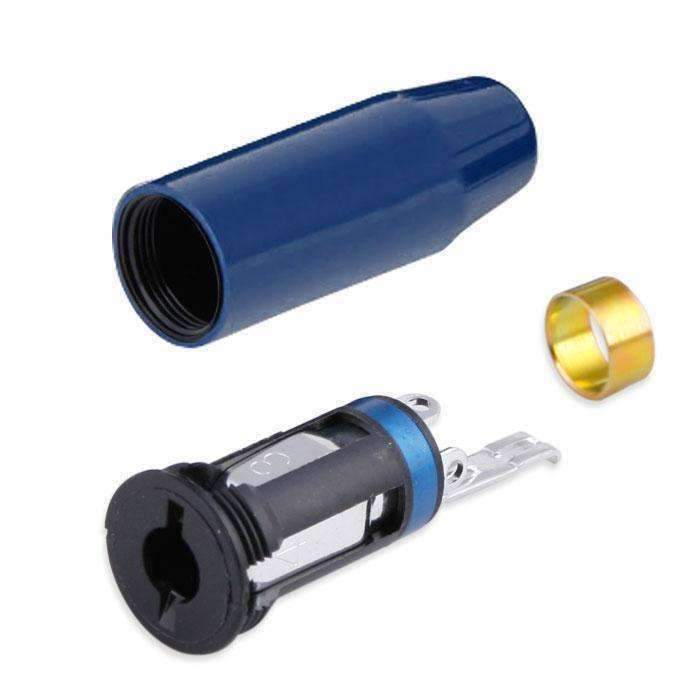

In-Line Jack, Contacts Molded Into a Plastic Body, Accommodates Larger Cable Diameter.

Conductors  - 4

Application - Ruggedized Commercial Military

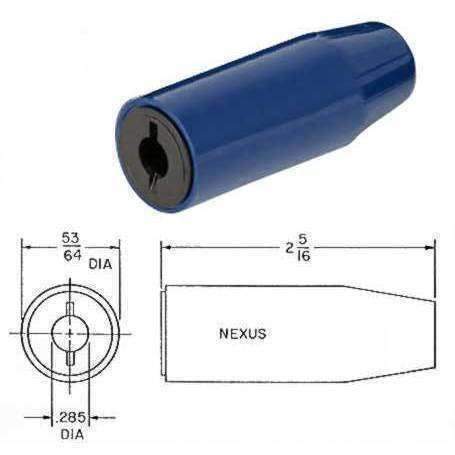

Overall Width - .828 in

Overall Height - .828 in

Overall Length - 2.312 in

Contact Diameter - .285 in

Shell Material - Plastic

Contact Material - Nickel Plated Beryllium Copper

Standard - MIL-C-9177

Alternate P/N - M9177/3-1 U-92A/U

Solder Contacts Terminals - Pre-tinned over Nickel Plating

Contact Resistance - < .02 O

Insulation Resistance - > 1,000 mO

Dielectric Withstanding Voltage - M9177/3-1 U-92A/U

Insertion Force Maximum - 13 lb

Withdrawl Force - 6 to 10 lb
